Note ! ! !

The Autel MaxiDAS DS900-TS has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel MaxiPro MP900-TS.

Autel MaxiPro MP900-TS 👉 https://www.diagmart.com/products/autel-maxipro-mp900ts-diagnostic-scanner-full-tpms

[discontinued]

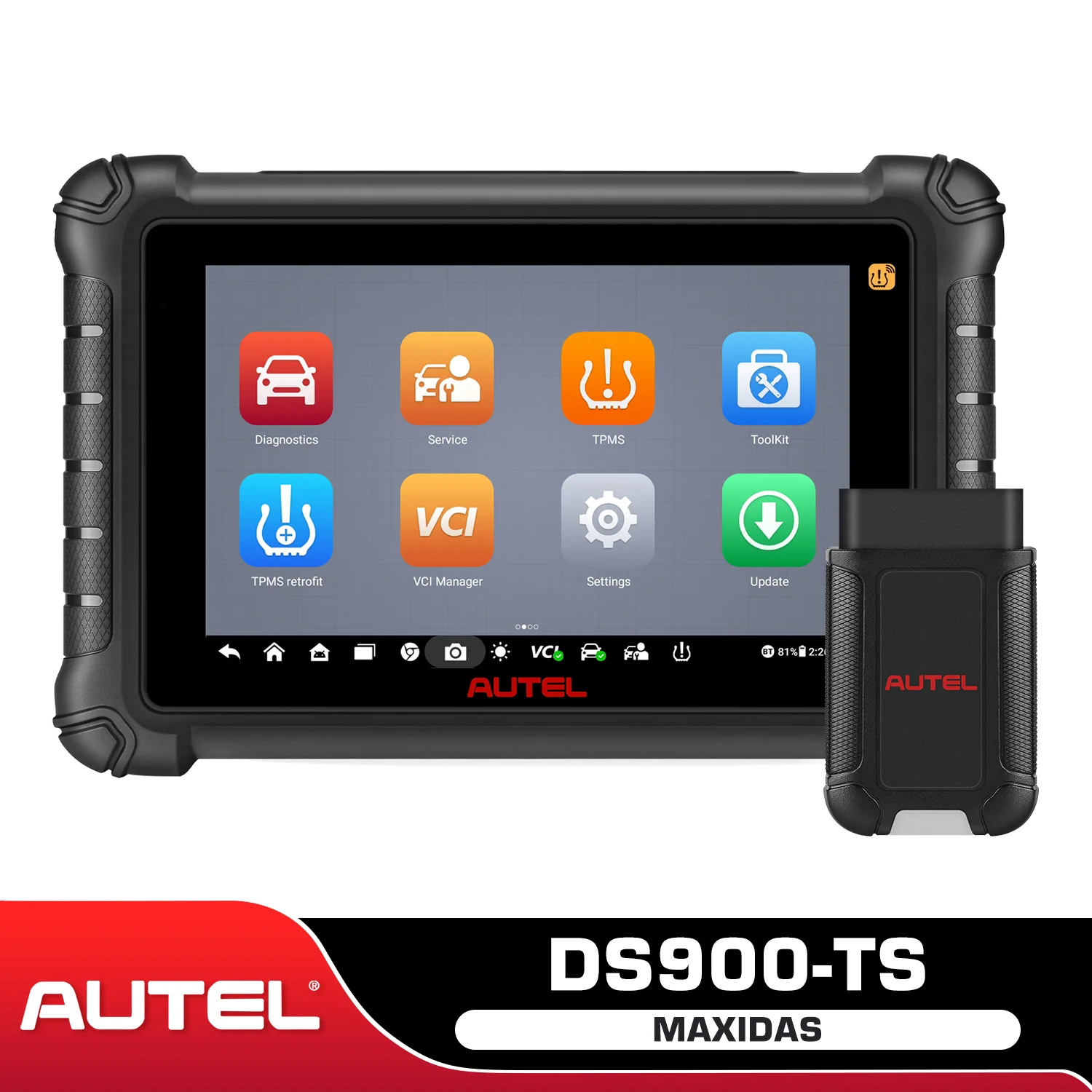

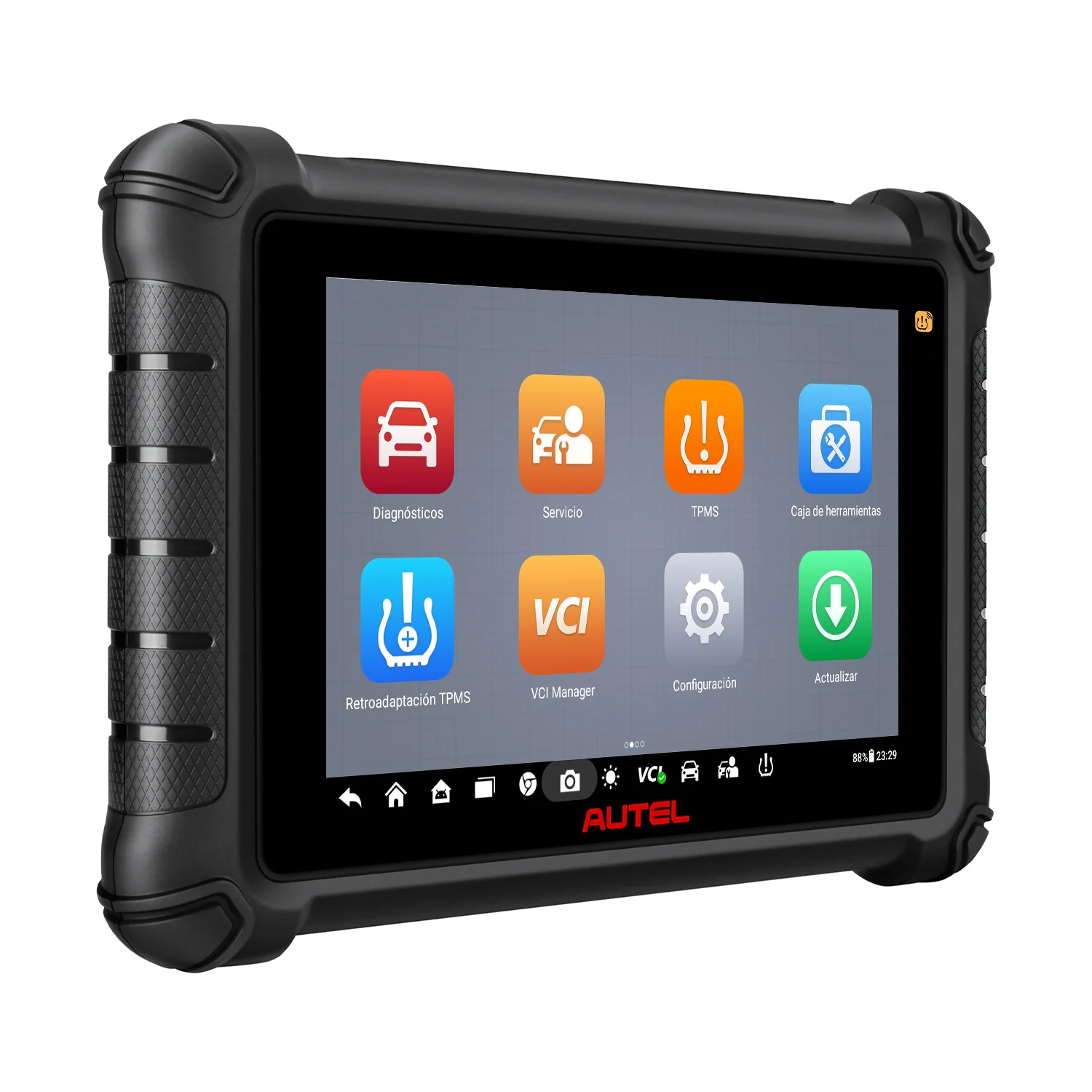

Autel MaxiDAS DS900-TS Diagnostic Scanner Newly Released

Autel MaxiDAS DS900-TS, equipped with Full TPMS and Diagnostics, performs well both in your vehicle diagnosis and in Full TPMS. It features Advanced ECU Coding, Top TPMS Functions, 40+ Hot Service Functions, All System Diagnosis, VAG Guided Functions, Bi-directional Control, FCA AutoAuth, and Refresh Hidden Functions, allows you to have both diagnostic and TPMS functions at the same time. So convenient!

Autel MaxiDAS DS900TS is Autel released model. Upgraded from DS808S-TS, this MaxiDAS DS900TS has more powerful configurations and more functions.

MaxiDAS DS900TS newly added functions - Compared to DS808S-TS

Powerful Hardware

Battery Capacity: 3.7V 7700 mAh
Camera: 8 Megapixel Rear
Screen: 8 inches
DLC: V150 instead of VCI Mini

More Extensive Functions

Pre & Post Scan
Scan VIN
Scan License
DoIP CAN FD Protocol
WIFI Print

Here are the features of this device:

Powerful Diagnostic Functions

Advanced ECU Coding
Bi-Directional Control / Active Test
40+ Hot Service Functions
OE-Level All System Diagnosis
VAG Guided Functions
Battery Test(with BT506)
Endoscope Functions(with MV108S)
FCA Auto Auth; Renault Access; Nissan Access(For EU&JP)
Refresh Hidden Functions
Comes with one year free update

Comprehensive TPMS Features

Activate TPMS Sensors
TPMS Diagnostic System
Autel MX-Sensors Programming
TPMS Check & Reset & Retrofitting

MaxiDAS DS900-TS Come With ECU Coding Function

Same as Autel MaxiSys MS906 Pro, Autel MaxiDAS DS900-TS also enables advanced ECU Coding functions. You can use it to:

ECU Replacement

Featuring ECU/Module replacement functions, MaxiDAS DS900-TS Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.

Customize Your Own Car

After you change the bad component or certain parts, you need to use this function to make a new code and recognize the new modules.
By changing the code with the ECU coding, it's easy to improve vehicle performance or stimulate high-end functions for the car.
ECU Online Coding is available for BMW/Porsche/VW, etc.

Unlock Hidden Functions

Activate higher-level car functions, like making the pointer move and perform self check etc. Disable the annoying car settings such as the Automatic Start/Stop etc.

Note:

ECU Coding does not imply changing the software! It only changes pre-programmed options already existent in the software.
ECU Coding and Unlock Hidden Functions require the device on active software subscription.
ECU related functions are not universal, please kindly check compatibility with us before order.

Autel MaxiDAS DS900-TS with Powerful TPMS Diagnostic System

It is worth mentioning that the Autel MaxiDAS DS900-TS is an Advanced TPMS Expert which can diagnose TPMS System and Read/Clear Codes. Compare with DS900BT / DS900 which don't support TPMS functions, this newly released MaxiDAS DS900-TS scanner performs to activate 99% TPMS sensors, program Autel MX-Sensors, TPMS Relearn, and TPMS sensor retrofitting.

Activate 99% TPMS Sensors

The Autel DS900-TS is able to trigger almost all known TPMS Sensors, and works in both 433 & 315 MHz Sensor.

Program Autel MX-Sensor

There are 2 ways to Program Autel MX-Sensor:Copy by OBD and Auto Create
Note: Autel DS900-TS Can only programming Autel MX-sensors.

TPMS Relearn

This function can help your newly replaced TPMS Sensors Work Properly, including OBD Relearn, Automatic Relearn, Stationary Relearn.

Advanced TPMS Retrofit

Here are some steps to perform the TPMS Retrofit Functions:

1. Backup Data Back up and save the data of the original vehicle
2. Code TPMS Encode TPMS with MaxiDAS DS900-TS
3. Set up TPMS Set various parameters of TPMS
4. Program TPMS Module Program sensor into TPMS Module
5. Retrofit TPMS to Vehicle Dashboard Set TPMS parameter to Dashboard panels

MaxiDAS DS900-TS with 40+ Hot Service Functions

The Autel MaxiDAS DS900-TS OBD2 diagnosis scanner not only has powerful diagnostic functions but also has a vast range of service functions, which will help you easily complete repair work. A money saver for home technicians and money maker for car workshops.

Injector Coding--- Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

Brake Reset--- Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;

GEAR Learn--- Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

Key Coding--- Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;

Oil Reset--- Reset the oil life systems every time the oil and oil filter are changed;

SAS Reset--- Perform steering angle sensor calibration and clear records;

BMS Reset--- Evaluate the battery charge state, register the battery replacement, etc.

ABS Bleeding--- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;

Relearn Throttle--- Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;

DPF REG--- Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

Note: Services and Reset functions are not universal to all the cars, please check compatibility with your VIN before you order.

Full Bi-directional Control Automotive Scanner

Full Capability in Bi-directional Control/ Component Tests

MaxiDAS DS900-TS newest car scanner diagnostic tool features full bi-directional control ability, to send commands to the vehicle's systems/components, to verify system input/output without using the vehicle's controls.

Fuel Injector Balance, Injector Tests
Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
Cycling ABS Pump Motor, EVAP Tests
Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
Cooling fan motor command, Interior lighting test, High beam test

OE-Level Diagnosis Same as Original Factory Equipment

Autel MaxiDAS DS900-TS car diagnosis expert can read DTCs and data streams for all available systems, and perform active test on the most extensive vehicles.

For instance:

Engines/ Auto Transmission/ Airbags/ Immobilizer/ABS/ Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Parking Brake & Motor Assisted/ Power Steering/ Tyre Pressure / Rain Sensors / Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti-Theft/ Soft Top/ Headlamp Leveling/ Automatic Clutch/ Headlights/Wash Wipe/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Clutch Electronics, etc.

Autel MaxiDAS DS900-TS in Extensive Vehicle Coverage

USA:

GM, Ford, FordEU, Chrysler, Dodge, Jeep

Asia:

Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion

Europe:

Benz, Sprinter, BMW, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Citroen, Dacia, Ford, Jaguar, Lambor Ghini

Autel MaxiDAS DS900-TS 10+ High-end Functions

Work with Battery Test BT506

With the extra Autel MaxiBAS BT506 Battery Tests, it can help you test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries, and can perform in-vehicle & out-of-vehicle tests to determine the health status of the battery, the starter, and the generator respectively.

Work with Autel MV108S Camera

This function can provide you clear image, such as engine cylinders and other small part inspections, easy-to-see.

VAG Guided Functions

Step-by-step operation guidance, easy to master usage for beginners. Compatible with VW/ Audi/ Skoda/ Seat cars etc.

Autel MaxiDAS DS900-TS Specifications

Operating System	Android 11
Processor	Quad core Processor(1.8GHz)
Memory	4GB RAM & 64GB ROM
Display	8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera	8 MP
Connectivity	USB Type-C
	USB 2.0
	Wi-Fi
	Bluetooth
	Mini SD card (supports up to 64GB)
Audio Input/Output	Input: N/A
Audio Input/Output	Output: buzzer
Power and Battery	3.7 V/7700mAh lithium-polymer battery
Power and Battery	Charges via 5 VDC power supply
Battery Charging Input	5 V/3 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD
